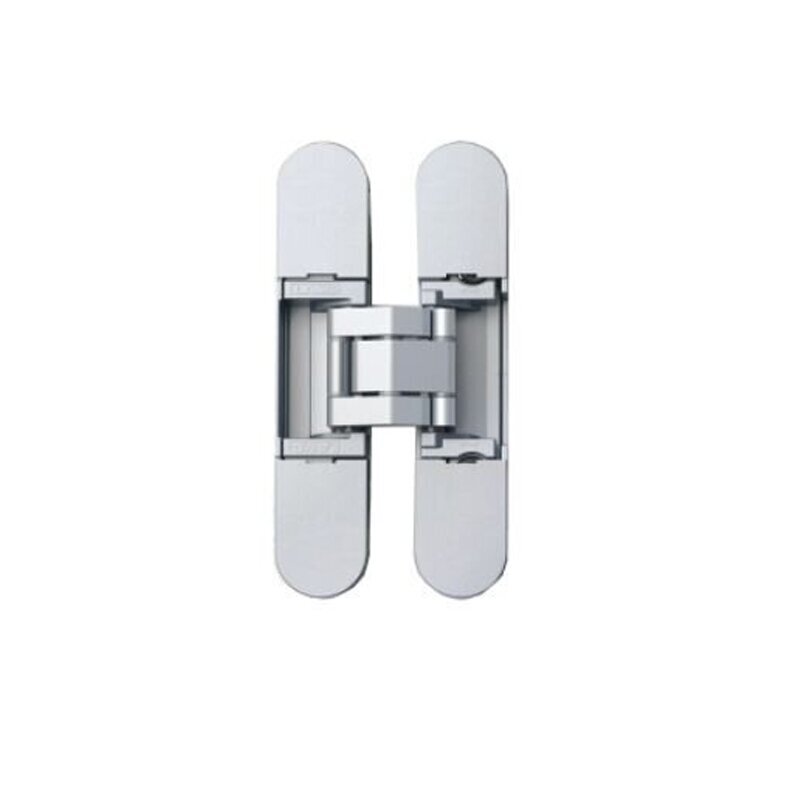

3-WAY ADJUSTABLE CONCEALED HINGE HES3D-90
3-WAY ADJUSTABLE CONCEALED HINGE HES3D-90
Code: SU.HES3D-90DCManufacturerSUGATSUNE-

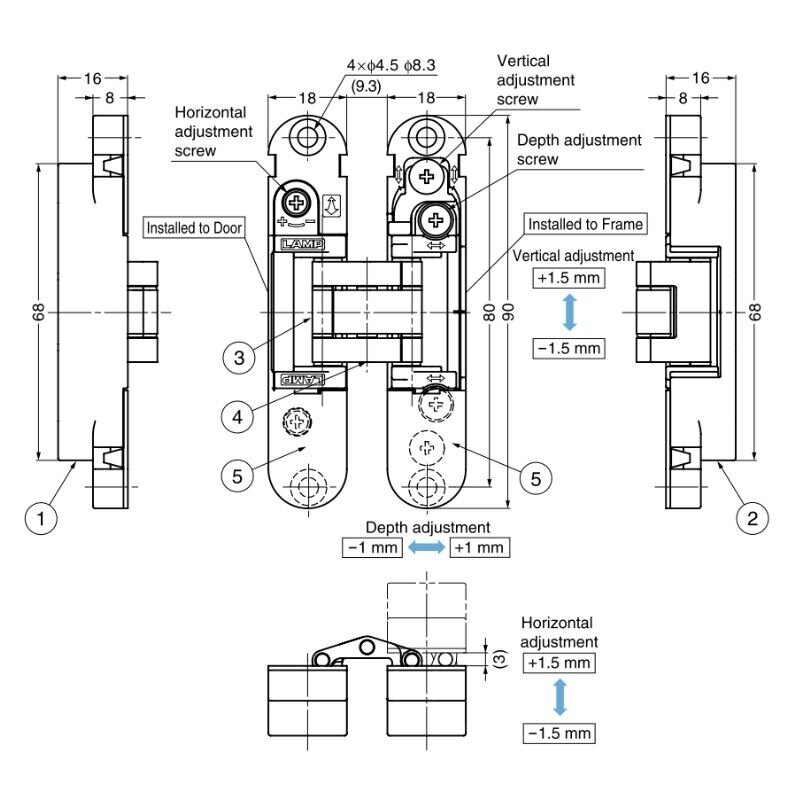

- 3-way adjustment function allows vertical, horizontal, and depth adjustment
after hinge installed.- Cover hides all screw heads for clean appearance.
- Maximal opening angle - 180°.
- Minimal door thickness - 23 mm.
- Max. door width - 600 mm.
- Max. door height - 1500 mm (recommended. Larger doos can be used if the weight is within specification).
- Made of high quality zinc alloy.
- Made in Japan.
* Upon request. Delivery time 3-4 weeks.
