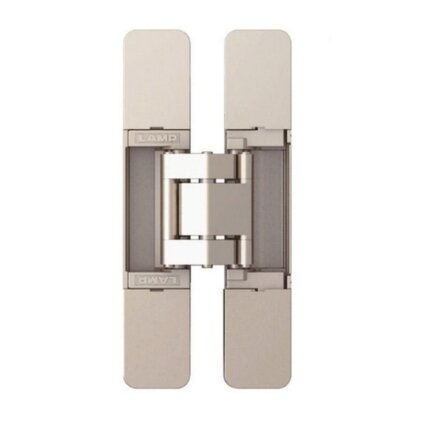

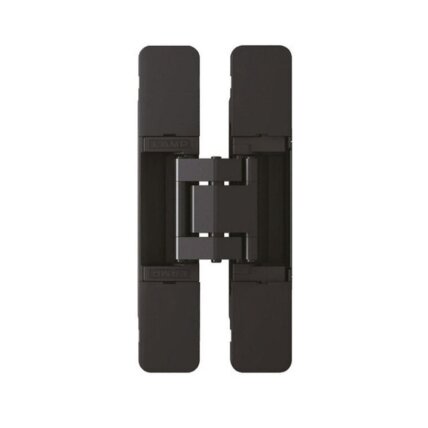

3-WAY ADJUSTABLE CONCEALED HINGE HES3D-E160
3-WAY ADJUSTABLE CONCEALED HINGE HES3D-E160
Code: SU.HES3D-E160DNManufacturerSUGATSUNE-

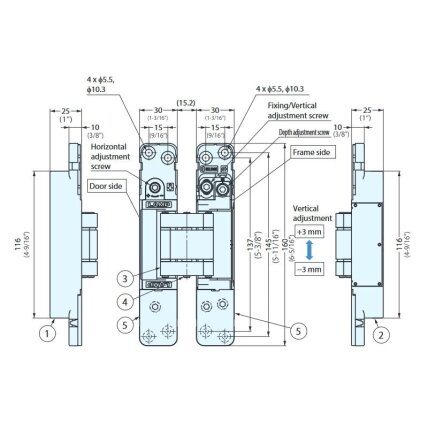

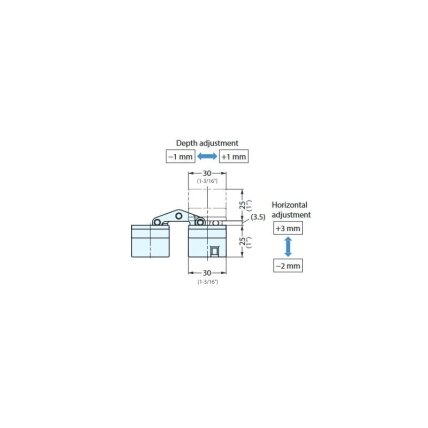

- 3-way adjustment function allows vertical, horizontal, and depth adjustment
after hinge installed.- Cover hides all screw heads for clean appearance.
- Maximal opening angle - 180º.
- Minimal door thickness - 35 mm.
- Made of high quality zinc alloy.
- Max. door weight: 55 kg, with 2 hinges.
- Max. door weight: 70 kg, with 3 hinges.
- Max. door width - 900 mm.
- Max. door height - 2400 mm (recommended. Larger doos can be used if the weight is within specification).
- Made in Japan.
