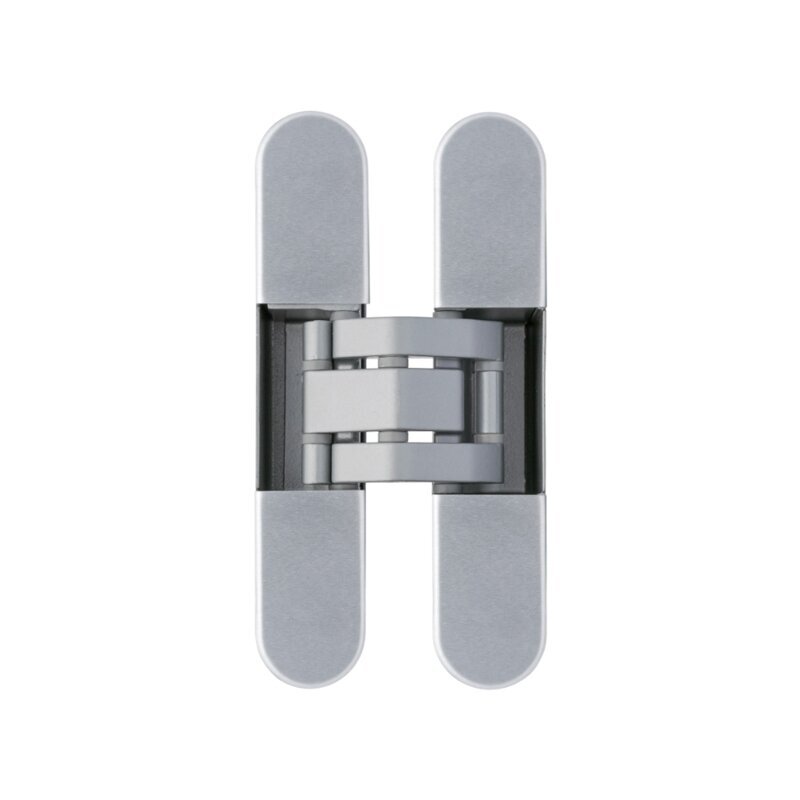

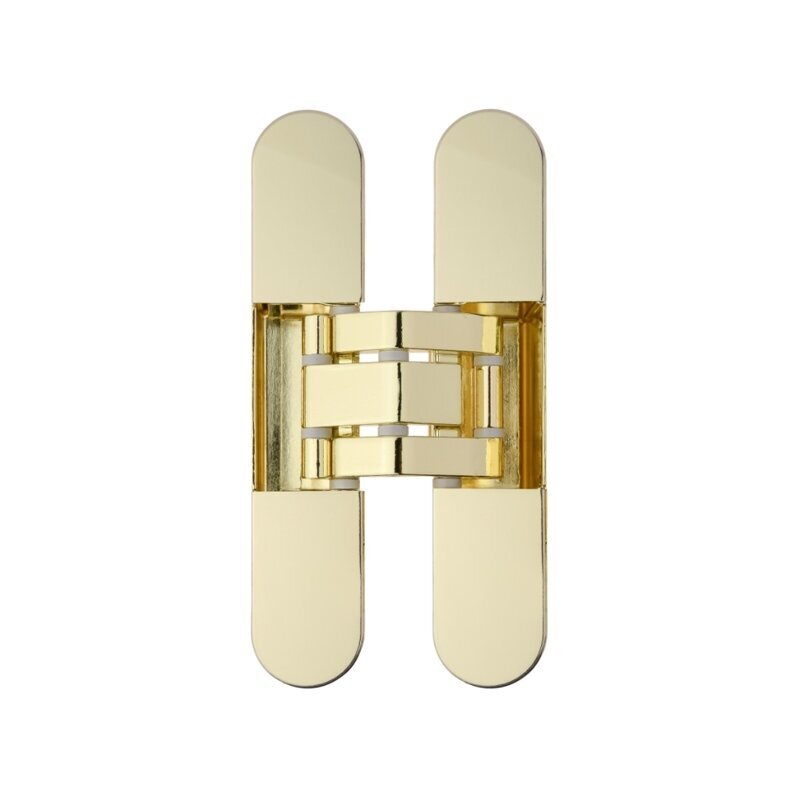

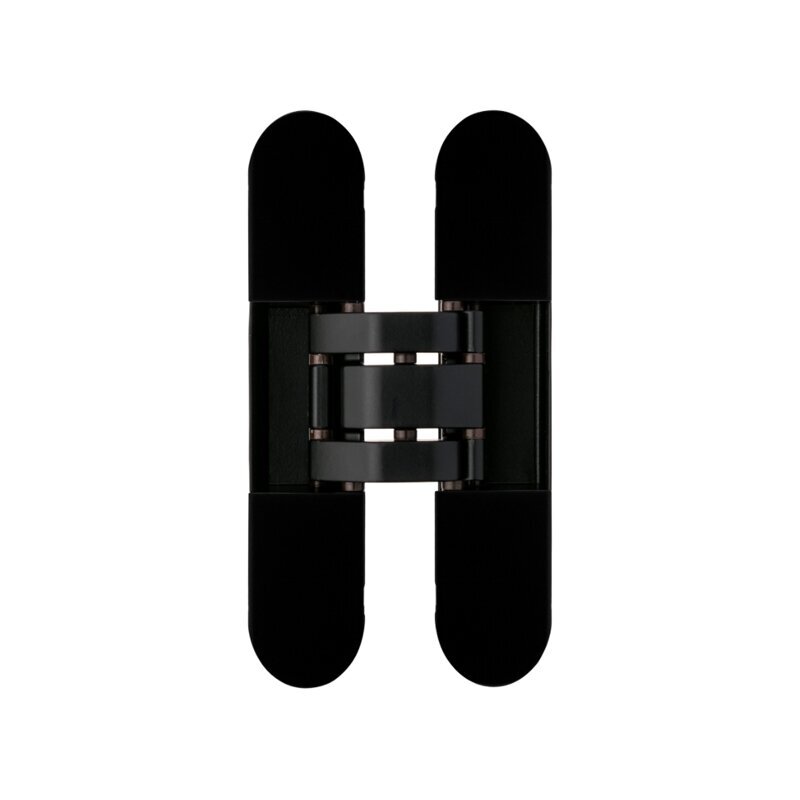

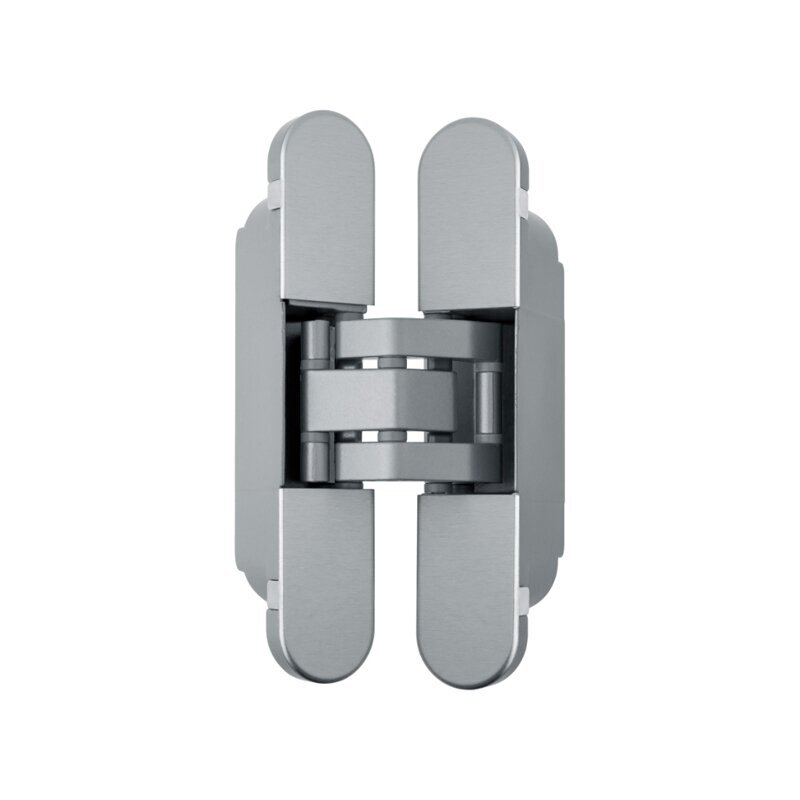

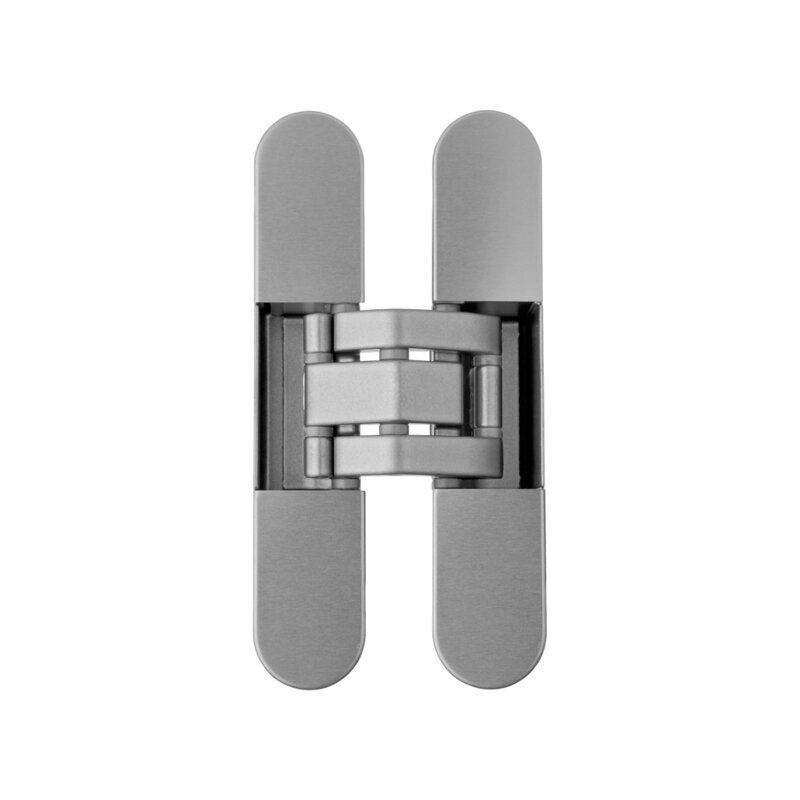

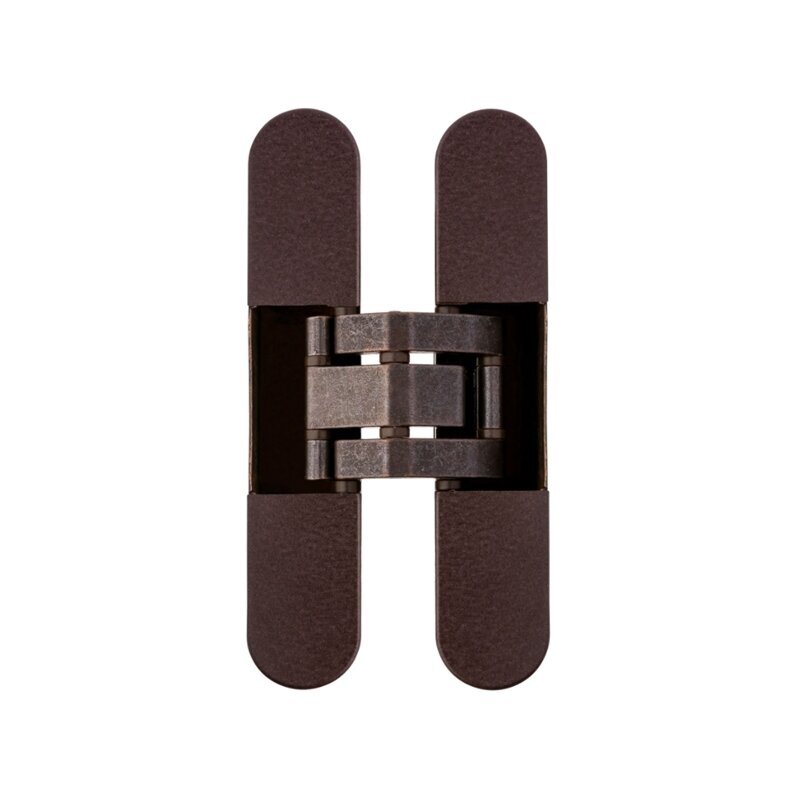

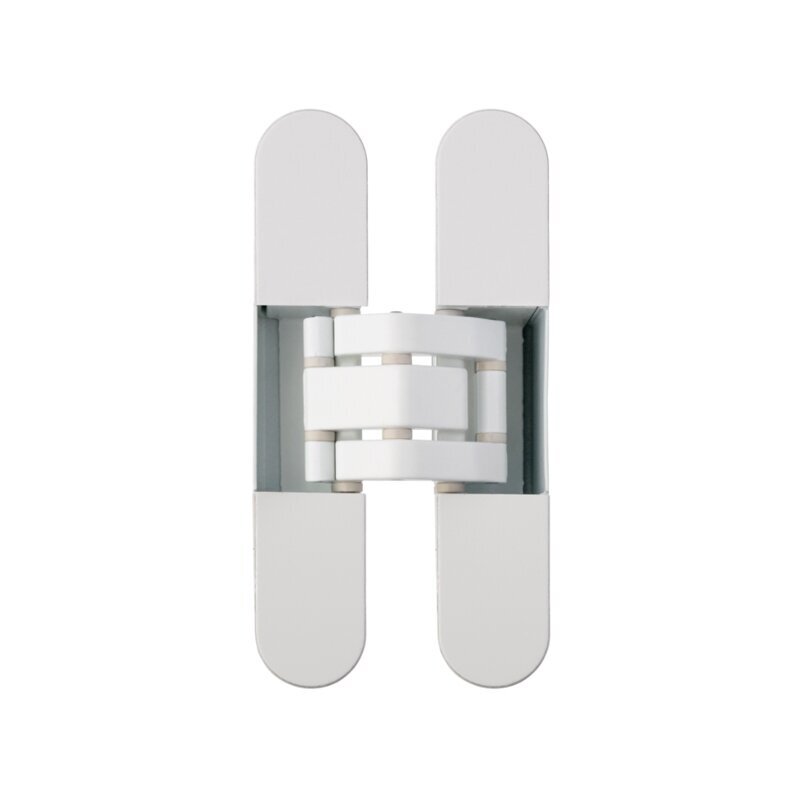

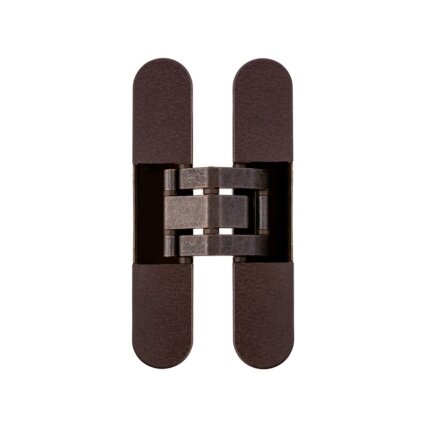

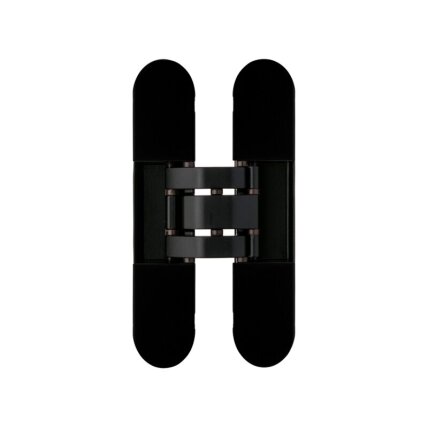

3D adjustable concealed hinge Invisacta IN230
3D adjustable concealed hinge Invisacta IN230
Code: OT.KIN230.MNI-
- Door hinges for wooden or aluminum profile doors.
- Maximum door load: with 2 pcs. hinges – 60 kg (tested with 900x2100mm doors).
- Universal - suitable for both left and right side door leaves.
- Maximal opening angle – 180°.

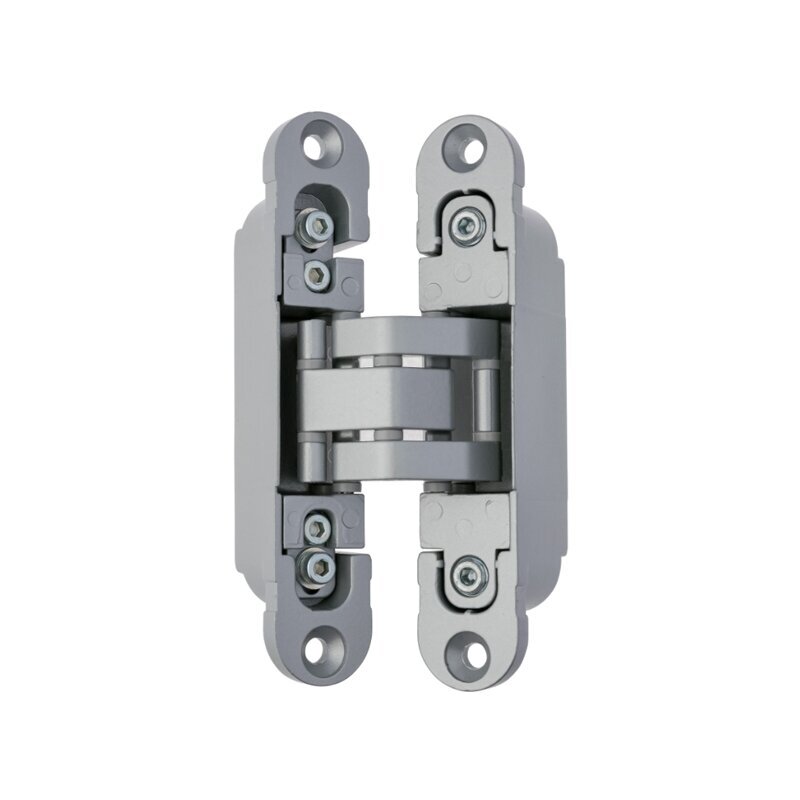

- 3-way adjustment: vertical adjustment +/- 2 mm, horizontal adjustment +/- 1 mm, depth adjustment +/- 1 mm.
- Made of high quality zinc alloy.
- CE certificate - 020001-01-0405.
- Fire certificate UNI-EN 1634-2.
